SiAECOSYS New 3.13inch TFT SCJ313 Speedometer CAN BUS and One-Lin Protocol for Electric Motorcycle Long Gauge Adjustable Display

NOTE:

1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).

2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance,

otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

In CAN-BUS communication, the controller could also match with the speedometer (SiAECOSYS CAN protocol), it display battery SOC if the battery protocol match with speedometer. If not, the speedometer will show lack of electricity always.

One set including below

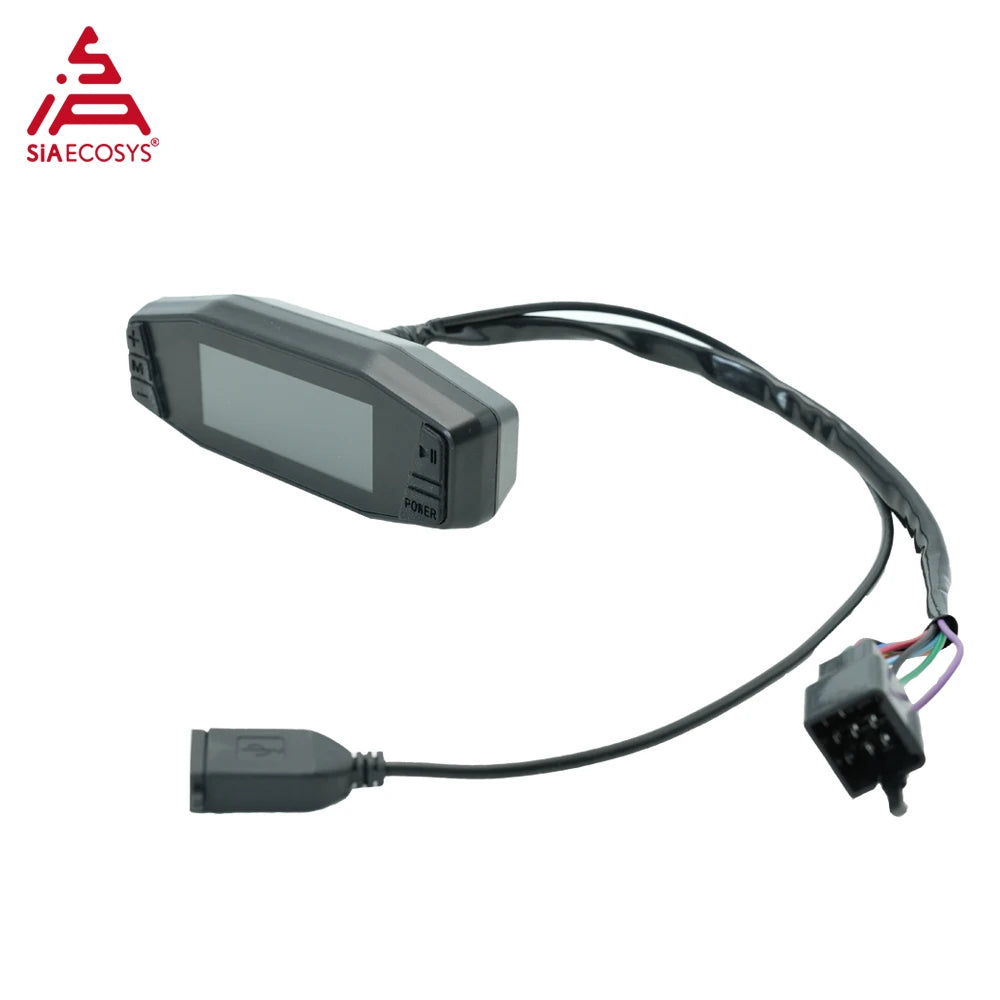

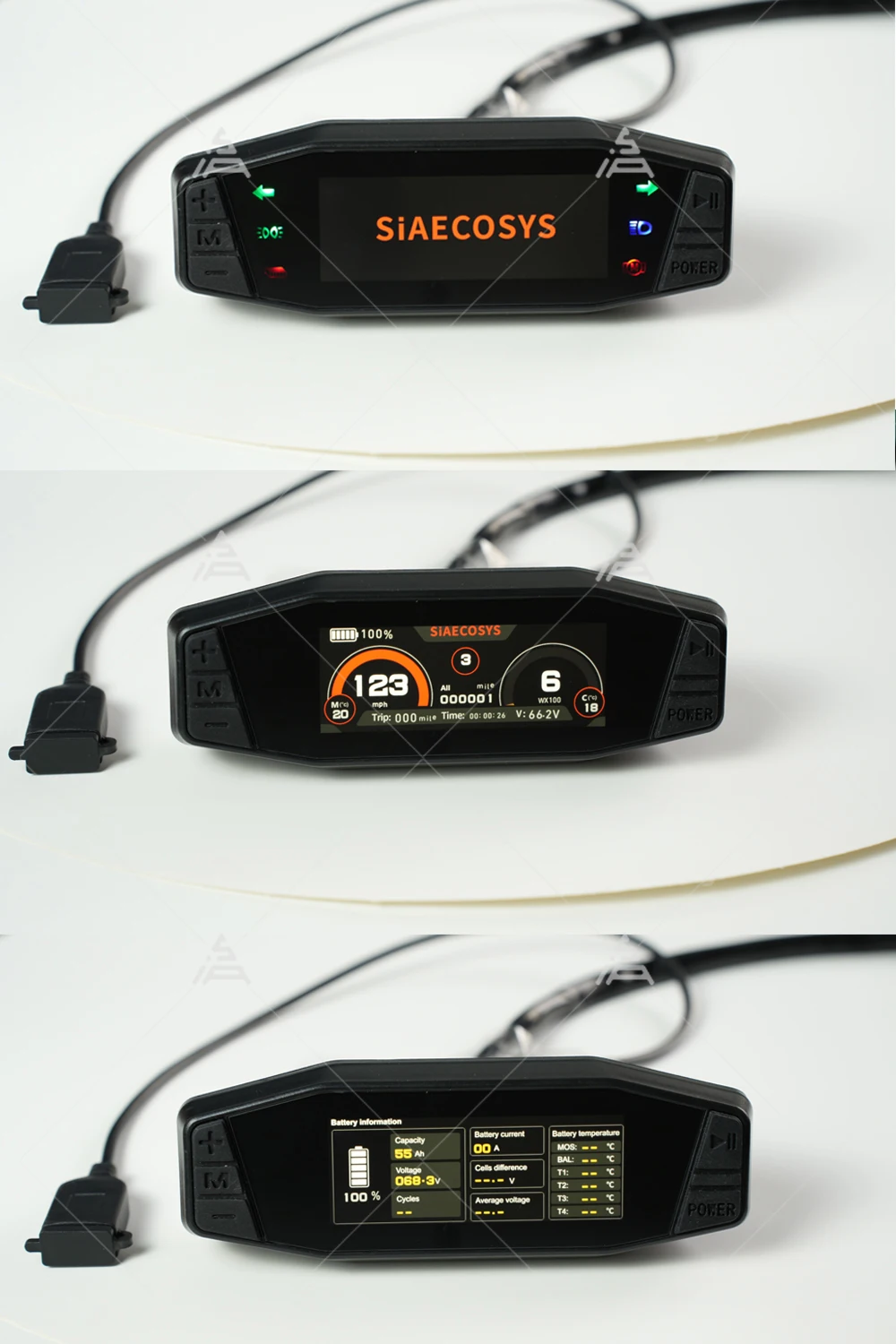

1pc x 3.13inch SCJ313 Speedometer(adjustable)

1. Pixel: 376*960.  Brightness: 1000 cd/m²

2. Speedometer operating voltage width: DC12 - 150V

3. The Speedometer displays both lithium and lead-acid battery levels in a universal manner.

4. Protection level: IP65, Operating range: -20°C ~ +70°C

5. Background setting: voltage range setting, voltage calibration, adjustable speed, public mile switching, speed limit, power unit accuracy, viewing software version number, etc.

6. USB software upgrade function

7.Support CAN, One-line communication.

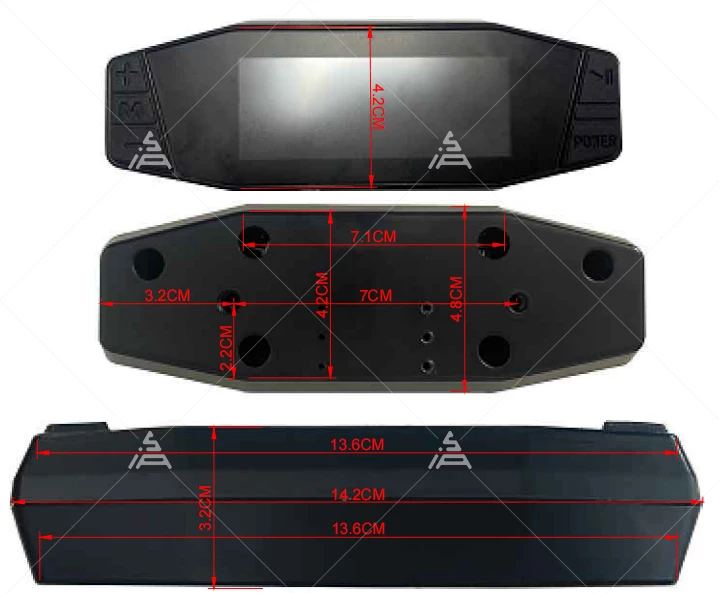

Drawing

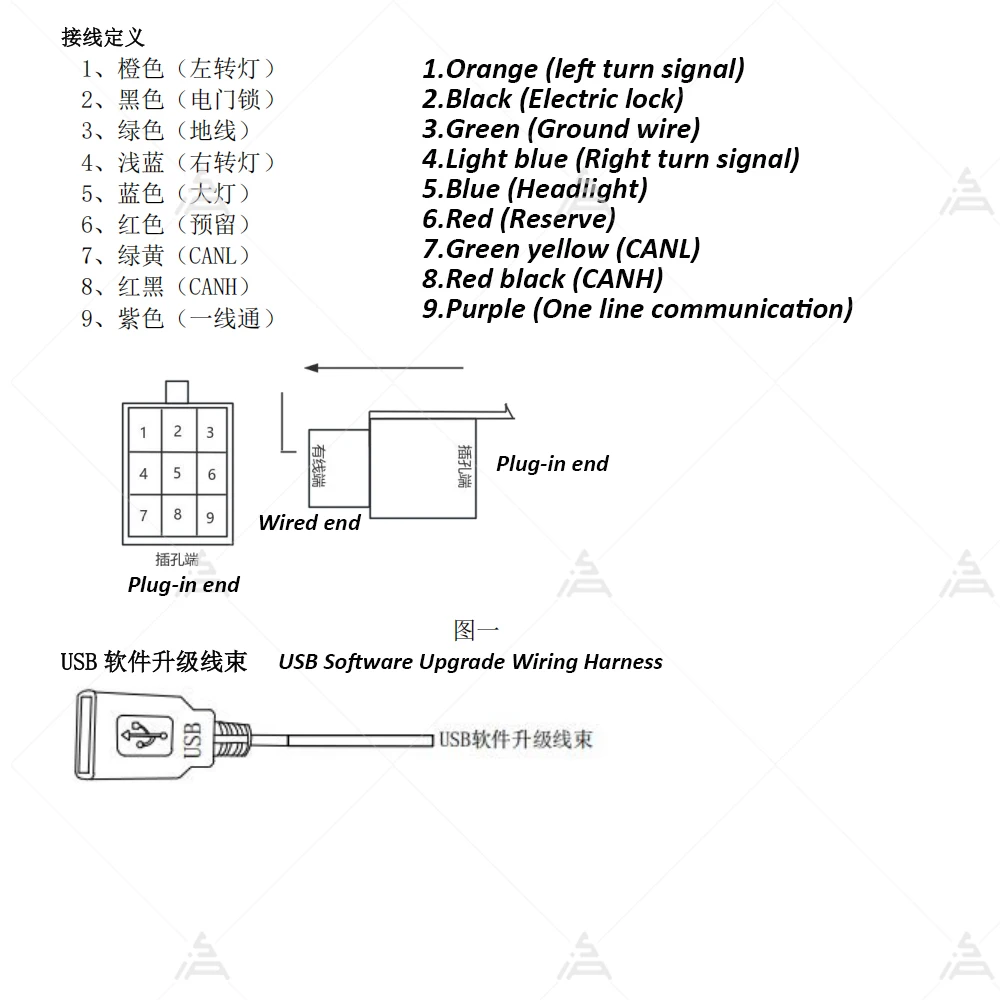

Wiring Definition

Details
